Volar plate injuries

On plain film

Introduction

A man in his 40s presents with finger pain and swelling after a hyperextension injury. The X-ray looks normal at first glance, but there’s more to see.

In this case, we’ll walk through the importance of two views in finger trauma, show how to spot a volar plate injury, and explain why the lateral X-ray is key to making the diagnosis.

CONTENTS

Case introduction

Video explanation

PA view

Lateral view

Volar plate

Treatment

Case introduction

A male in his 40s presents with pain and swelling in his index finger following a hyperextension injury. Have a look at the X-Ray below.

PA (left) and lateral (right) views of the index finger

Video explanation

Here is a video explanation of this case: click full screen in the bottom right corner to make it big. If you prefer though I go through this in the text explanation below.

Assessing the PA view

Let’s begin with the frontal X-ray of the index finger.

  • Bones: Start by identifying the metacarpal, proximal phalanx, middle phalanx, and distal phalanx.
  • Soft Tissue Swelling: Comparing the index finger to the middle finger, there’s visible soft tissue swelling, a hallmark sign of trauma.
  • Alignment: Each phalanx lines up well with the adjacent one, so the alignment appears normal.
  • Fracture Search:
    • Look for breaks in the cortex or lucent lines, the key signs of a fracture.
    • Zoom in to examine the cortex of each bone closely.
    • On this view, no obvious fracture is seen.

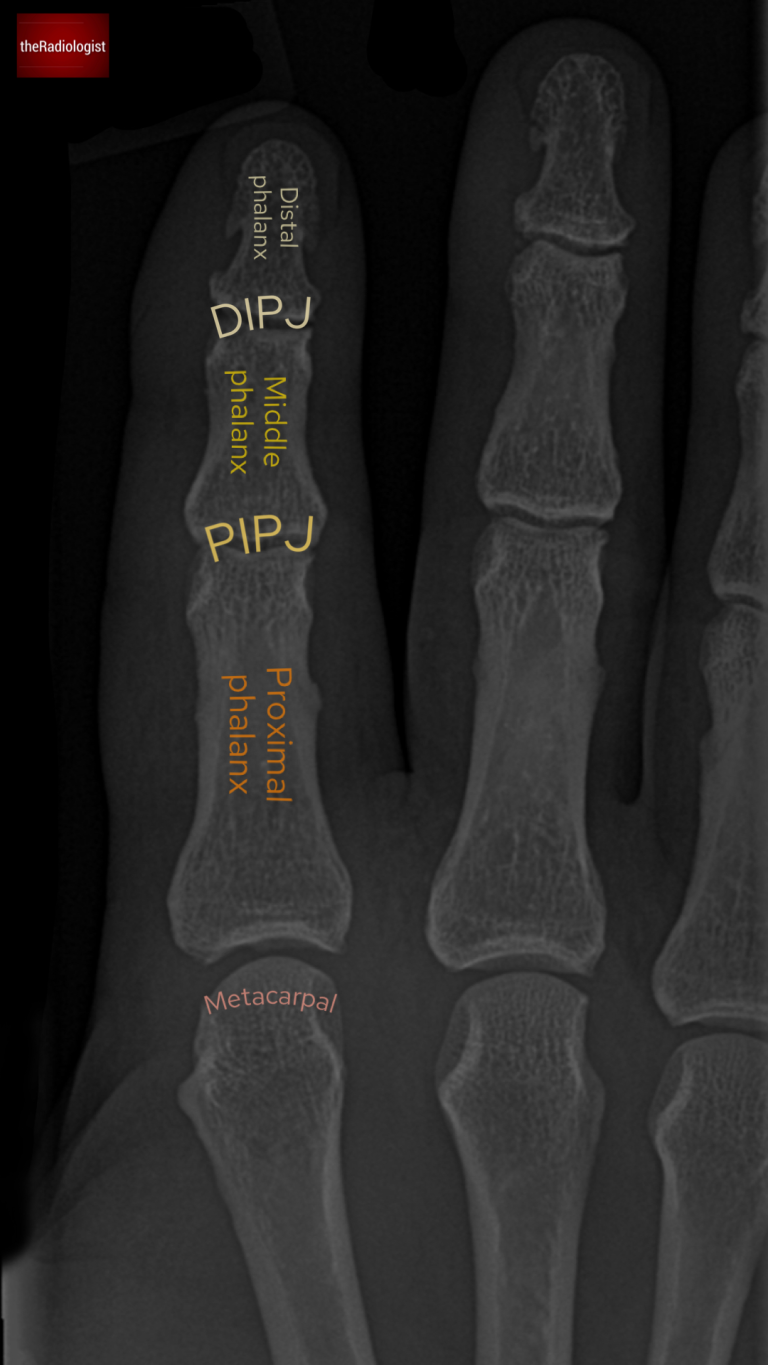

Annotated image of the PA view of the X-Ray showing the basic anatomy.

Assessing the lateral view

In trauma imaging, one view is never enough. A single projection may miss critical findings. Let’s move to the lateral X-ray to get a clearer picture.

On the lateral X-ray:

  • Soft Tissue Swelling: The swelling seen on the frontal view is confirmed here.
  • Fracture Identification: This time, a break in the cortex is visible at the base of the middle phalanx, just above the proximal interphalangeal (PIP) joint.

This location is classic for a volar plate injury.

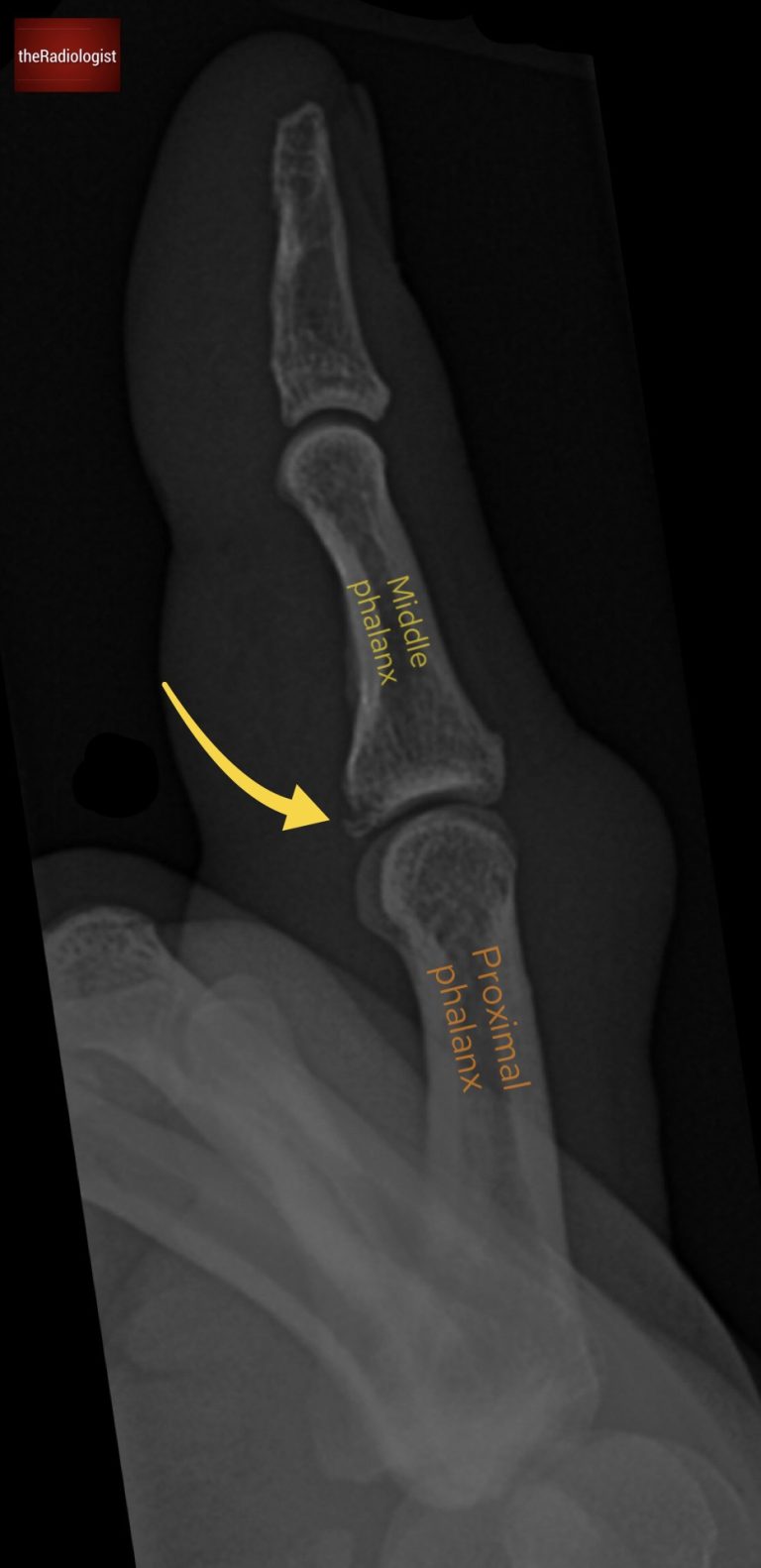

Lateral view shows a fracture at the base of the middle phalanx.

The volar plate

The volar plate is a fibrocartilaginous structure that stabilizes the PIP joint and prevents hyperextension.

  • It originates from the proximal phalanx and inserts onto the base of the middle phalanx.
  • Hyperextension can cause partial or complete rupture, often leading to an avulsion fracture at the middle phalanx base.

Location of Rupture

Most commonly at the base of the middle phalanx due to checkrein ligaments reinforcing the proximal phalanx insertion.

Fracture Pattern

The injury may present with a visible avulsion fracture fragment. In severe cases, there can be subluxation or even dislocation of the PIP joint.

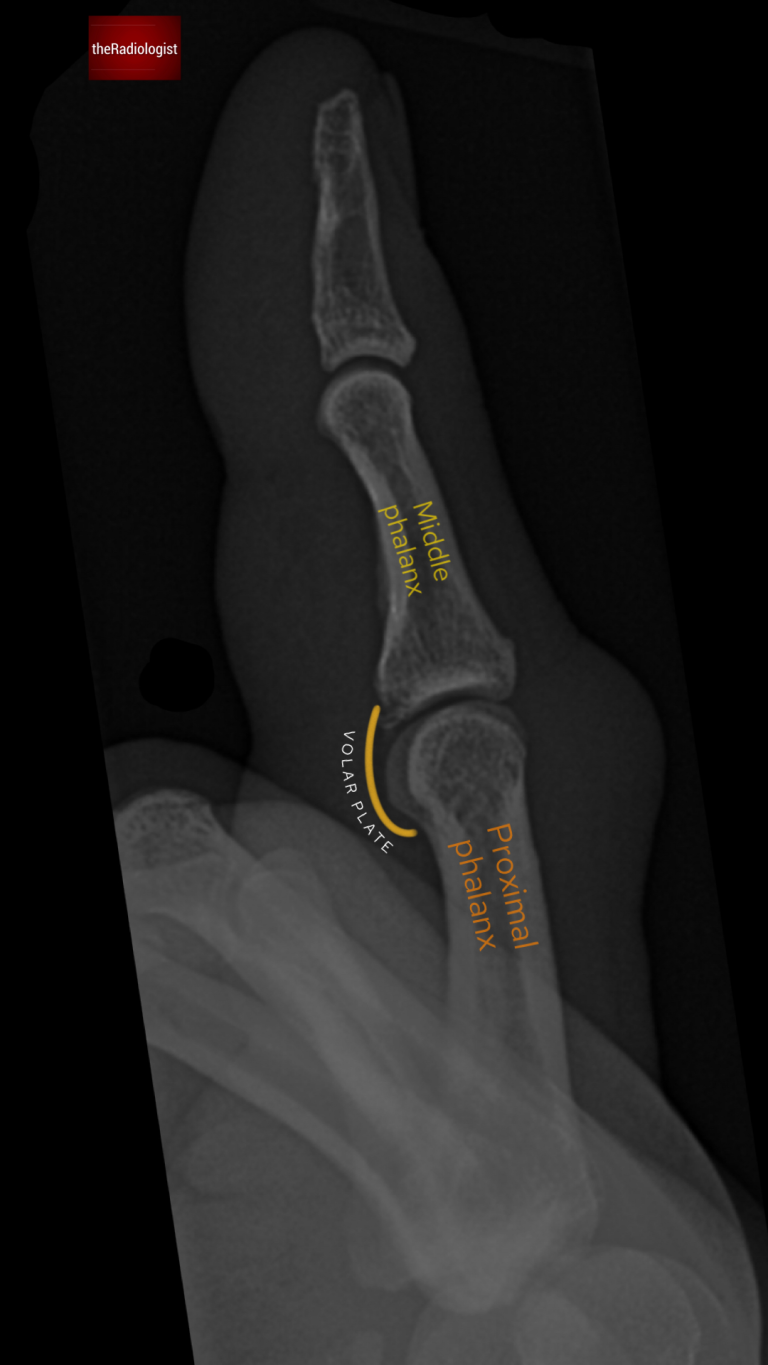

The volar plate stablises the proximal interphalangeal joint (PIPJ) and inserts onto the base of the middle phalanx.

Treatment

Most volar plate injuries are managed conservatively with splinting.

When should we intervene?

Surgical intervention is considered if the fracture involves more than 40% of the joint surface or if it cannot be reduced to less than 30 degrees of flexion.

KEY POINT

In hyperextension injuries remember to interrogate the middle phalanx on the lateral view so as to not miss a volar plate injury.
